Harris Hp715 Flowgauge Regulator – 100 Scfh Capacity, 120V Operation (3100220)

Description

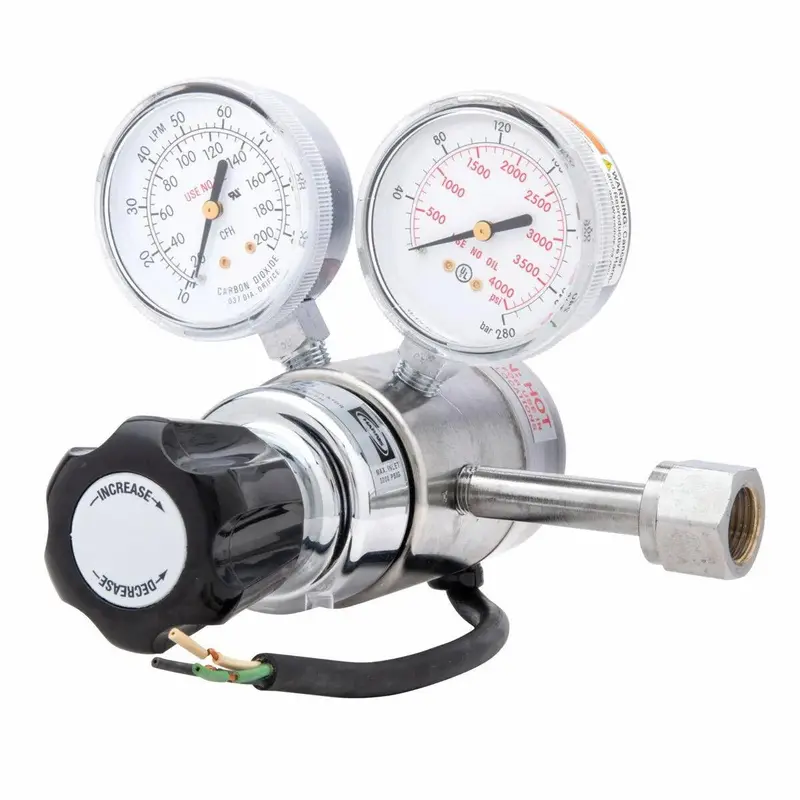

Harris Model HP715-100SCFH-320 120 volt Flowgauge Regulator – 3100220

Model HP715 is an electrically heated Two Stage flowgauge Regulator designed to resist high-flow carbon dioxide (CO2) Regulator freeze-up. It is perfectly suited for gas shielded welding, Ph control, blanketing and purging. The Regulator features electroless nickel-plated brass body, body and 2.5 in. dual scale gauges, large ergonomic ABS plastic adjusting knob, Stainless Steel diaphragm and one-piece encapsulated seat design with internal filter and PTFE Teflon seat. The heater is 200 watts, 120 volts. The outlet connection is 5/8 in. – 18 RH (F). Electrical components are UL listed.

Features

• Electrically heated flowgauge Regulator for use with carbon dioxide and argon-carbon dioxide mixes
• Prevents dry ice from developing in gas systems
• Provides up to 100 SCFH flow at 100% duty cycle
• Thermostatically controlled temperature
• Equipped with a 200 watt, 120 volt UL listed electric heater
• Electroless nickel-plated brass body and bonnet for longer service life
• 2.5 in. electroless nickel-plated brass dual scale easy-to-read gauges
• One-piece encapsulated seat design with internal filter and PTFE Teflon seat to protect from particulate contamination
• Features a Stainless Steel diaphragm to eliminate the absorption and release of off-gas contaminants
•
