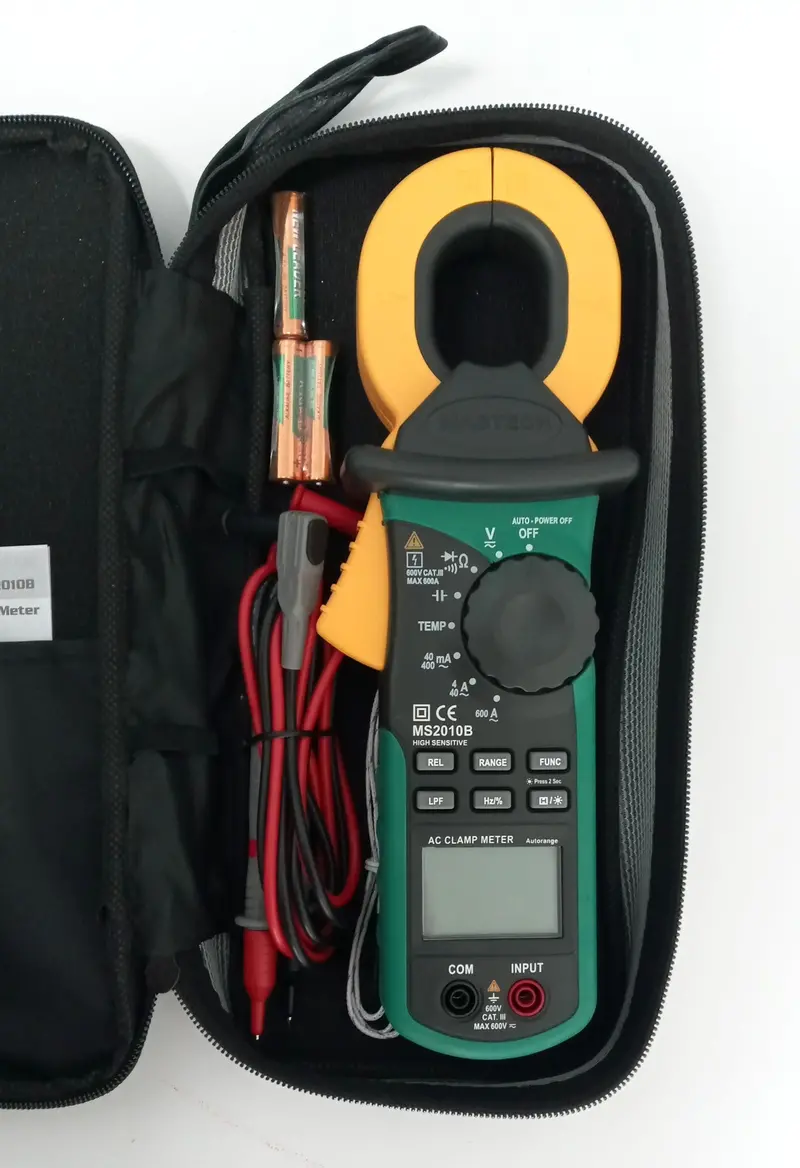

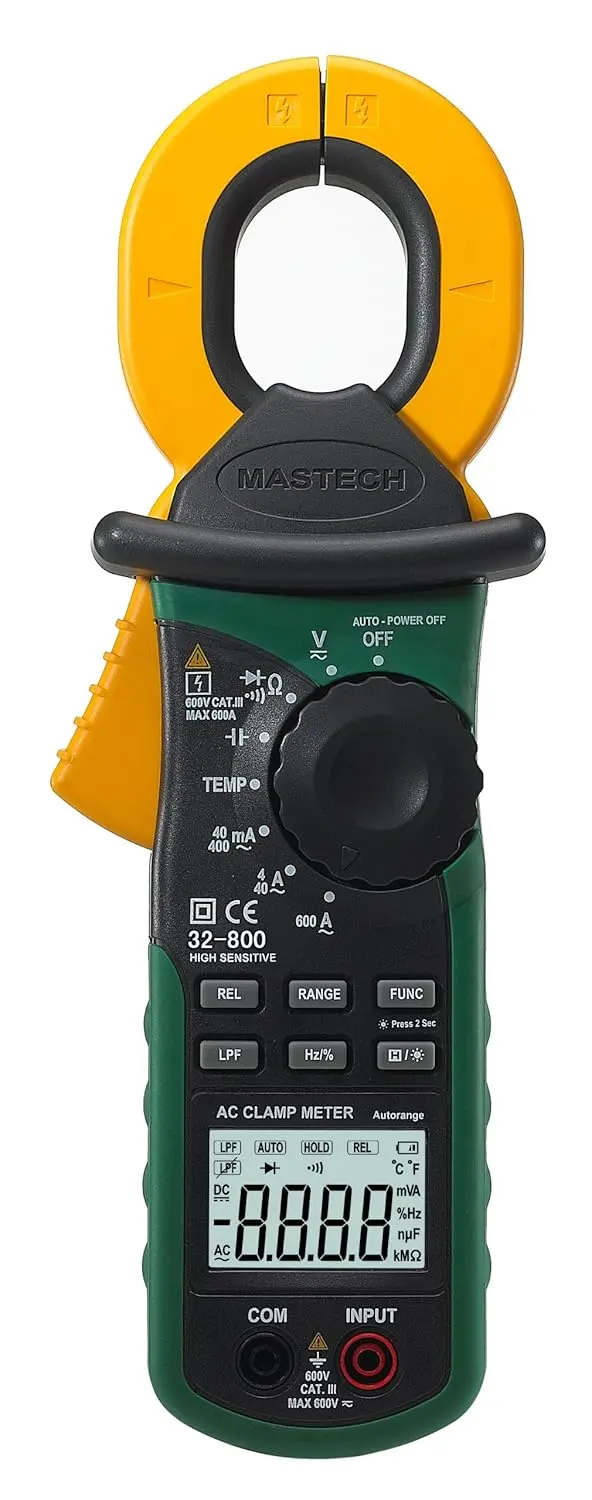

Mastech MS2010B High Sensitivity AC Leakage Clamp Meter

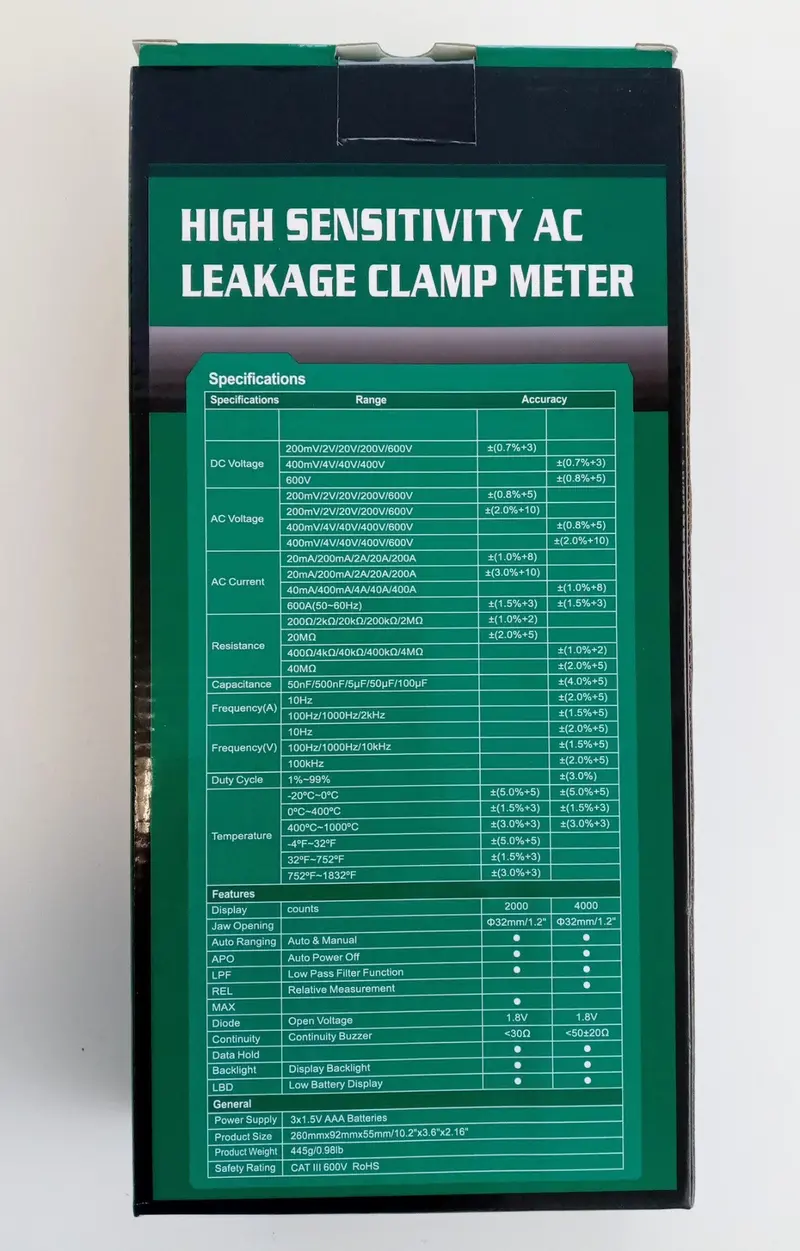

Mastech MS2010B (32-800) high sensitivity leakage clamp meter specifications: – DC voltage: 400mV/4V/40V/400V/600V – AC voltage: 400mV/4V/40V/400V/600V – AC current: 40MA/400MA/4a/40a/400a/600a – resistance: 400ω/4kω/40kω/400kω/4mω/40mω – capacitance: 40nF/400nF/4µf/40µf/100µf – frequency: 0 2kHz (from clamp) – frequency: 0 100kHz (from plug) – duty cycle: 10 percent 90 percent – temperature: -2ºc 1000ºc; -4ºf 1832ºf features: – display 4000 Counts – jaw opening φ31mm/1.2″ – auto ranging – auto power off – low pass filter function – relative measure – diode – continuous buzzer – data hold – display backlight – low battery display general: – power supply: 3×1. 5V AAA batteries – product size: 260mm x 92mm x 55mm/10.2″ x 3.6 inch x 2.16 inch – product weight: 445G/0.98lb – safety rating: CE, ETL, cat iii 600V RoHS
