Description

● Display 6000 counts.
● Jaw Opening Ф40mm/1.6″.
● Auto & Manual Ranging.
● Auto power off.
● Non contact voltage Detector.
● Relative measurement.
● Diode Open Voltage 3.2V.
● Continuity buzzer <50Ω.
● Data hold.
● Display backlight.
● MAX/MIN Measurement.
● Work light.
● True Root Mean Square.
● Low Battery Display.
● Dual Display.
● Bar graph.

Key Features:

• Multifunctional Measurement: AC/DC voltage, AC current, resistance, capacitance, frequency, duty cycle, and temperature.
• Temperature Measurement: -20°C to 1000°C (-4°F to 1832°F).
• Auto and Manual Ranging: Flexible measurement options.
• Max Jaw Opening: Ф40mm/1.6″.
• Max Display: 6000 counts for detail readings.
• True RMS: Provides accurate readings for linear and non-linear loads.
• Non-Contact Voltage (NCV) Detection: Ensures safety by detecting live wires without physical contact.
• Data Hold: Freeze the displayed measurement for easy recording.
• Relative Measurement: Eliminate low resistance or impedance on the test leads during measurements.
• Backlight and Work Light: Enhanced visibility in dim environments.
• Max/Min: Maximum and minimum values can be held on the screen.
• Analog Bar: Displays real-time signal trends.
• Safety Certified: CAT III 1000V / CAT IV 600V ratings ensure secure operation.
• Additional Features: Includes continuity buzzer, diode test, dual display, auto power off, and low battery display.

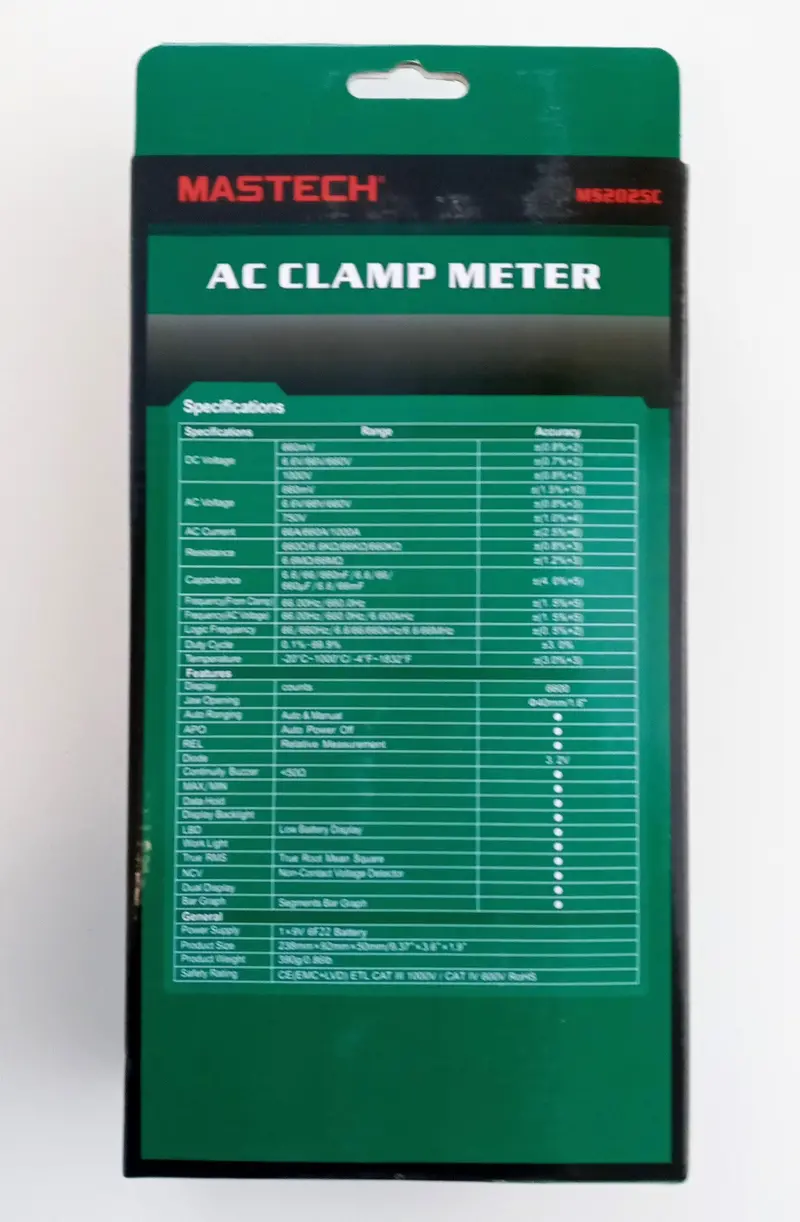

Specifications:

• DC Voltage: 660mV to 1000V
• AC Voltage: 660mV to 750V
• AC Current: 66A to 1000A
• Resistance: 660Ω to 66MΩ
• Capacitance: 6.6nF to 66mF
• Frequency: 66Hz to 66MHz
• Duty Cycle: 0.1% to 99.9%
• Temperature: -20°C to 1000°C (-4°F to 1832°F)
